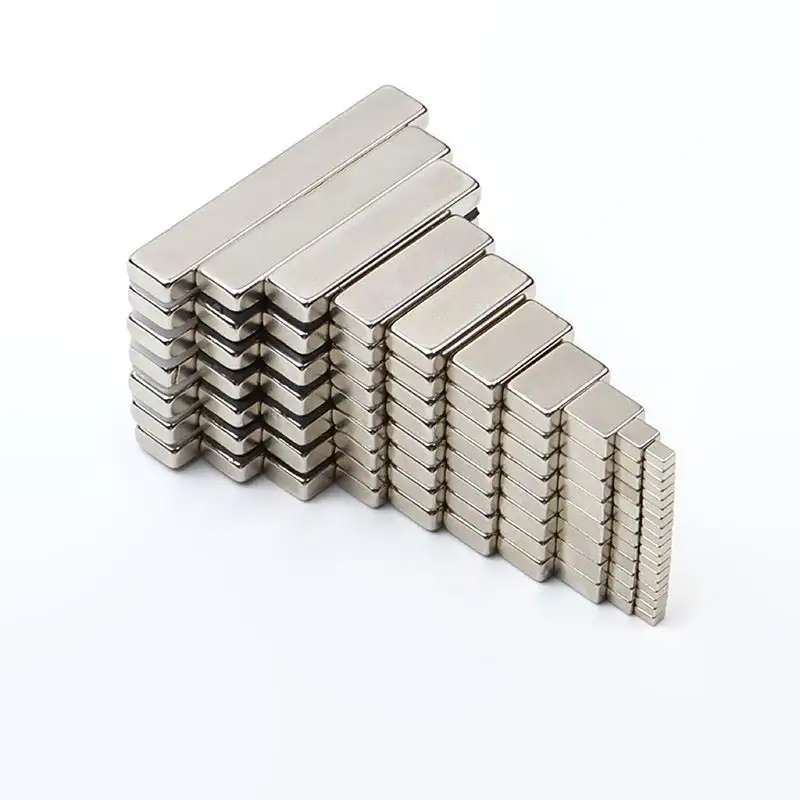

Block Magnets for Industrial Applications

What Are Block Magnets for Industrial Applications?

Block Magnets for Industrial Applications (also known as rectangular magnets, square magnet blocks, or magnetic slabs) are precision-engineered permanent magnet components designed to generate powerful, stable, and concentrated magnetic fields in heavy-duty machinery and industrial processes. Featuring flat, parallel surfaces with standardized or custom rectangular geometries, these magnet blocks deliver high volumetric efficiency, maximum pole contact area, and predictable holding or lifting forces.

Unlike standard consumer magnets, industrial-grade block magnets are manufactured under stringent metallurgical controls to withstand severe mechanical stresses, elevated operating temperatures, aggressive chemical exposure, and continuous dynamic forces. They serve as the core magnetic foundation in modern industrial automation, electric motor assemblies, magnetic separation systems, robotics, and heavy lifting machinery.

Types of Industrial Block Magnets

Depending on the mechanical requirements, environmental exposure, and flux density demands of your application, industrial block magnets are classified into several primary material types:

Materials and Magnetic Grades

To meet diverse mechanical and thermal challenges, our block magnets are produced in a comprehensive spectrum of magnetic grades:

Block Magnet Structure and Design

Selecting the proper Block Magnets for Industrial Applications requires a clear understanding of physical dimensions and magnetization direction:

Key Features

Our heavy-duty industrial block magnets are engineered to deliver measurable operational advantages:

1. High Consistency & Uniform Internal Structure

Utilizing advanced vacuum sintering and precise grain orientation technology, our blocks exhibit ultra-high magnetic consistency (±1% flux variation batch-to-batch), eliminating loss of excitation issues in large-scale assemblies.

2. Extreme Demagnetization Resistance

Specially developed high-coercivity grades (such as N48EH and N45AH) guarantee zero irreversible demagnetization under heavy electrical counter-torques, mechanical impact, and thermal surges.

3. Superior Surface Protective Coatings

To prevent oxidation and physical degradation in harsh operating environments, we offer industrial-grade multi-layer coatings including Ni-Cu-Ni, Epoxy (Black/Grey), Parylene, Zinc, and Teflon (PTFE).

4. Precision Tolerances

Using state-of-the-art wire EDM and diamond grinding machinery, our block magnets maintain strict dimensional tolerances down to ±0.05mm (or ±0.02mm upon request), ensuring seamless fit in tight motor slots or CNC housings.

Technical Specifications

Standard engineering parameters for our industrial permanent block magnet series:

Manufacturing Process

Every single block magnet is produced under complete vertical self-management, maintaining rigorous quality parameters at each step of production:

1. Raw Material Vacuum Melting: Pure rare earth metals (Neodymium, Praseodymium, Dysprosium, Iron, Boron) are melted in vacuum induction furnaces to create high-purity alloy ingots.
2. Hydrogen Jet Milling: Alloy ingots are crushed via hydrogen decrepitation and jet-milled into micro-scale, highly uniform powders.
3. Magnetic Field Pressing: The fine powder is compacted inside high-tonnage hydraulic presses under intense magnetic orienting fields to lock in crystalline alignment.
4. Vacuum Sintering: Green blocks are sintered at near-melting temperatures inside high-vacuum furnaces to achieve full material density (>95% purity).
5. Precision Machining: Sintered blocks are sliced and ground with diamond grinding wheels or wire-cut machinery to precise customer dimensions.
6. Surface Coating & Magnetization: Machined blocks undergo multi-stage electroplating/epoxy coating followed by high-voltage capacitive impulse magnetization.

Customization Capabilities

We specialize in full OEM and ODM custom production of Block Magnets for Industrial Applications tailored directly to your engineering blueprints:

Industrial Applications

Our permanent magnetic blocks are deployed worldwide across critical industrial domains:

Why Choose Zhaobao Magnet Group

Partnering with Zhaobao Group gives you access to 30 years of manufacturing mastery and technical authority in permanent magnet technology:

Selection Guide

When engineering or procuring an Industrial Magnetic Bar or block component, consider these critical selection parameters:

1. Required Magnetic Pull Force: Calculate the air gap and required holding power to determine if N35, N52, or N54 grades are necessary.
2. Maximum Operating Temperature: Match the continuous working temperature to the correct thermal grade (Standard ≤80°C, M ≤100°C, H ≤120°C, SH ≤150°C, UH ≤180°C, EH ≤200°C, AH ≤240°C).
3. Environmental Exposure: Select Ni-Cu-Ni for indoor general machinery, Epoxy for high humidity, or SmCo material for corrosive chemical environments.
4. Mechanical Mounting: Determine if flat surface bonding (structural epoxy) or mechanical fastening (countersunk screw holes) is best suited for your structural design.

Frequently Asked Questions

Get Custom Block Magnets for Your Project

Need expert technical guidance or a competitive wholesale quote for Block Magnets for Industrial Applications? Contact Zhaobao Magnet Group today for barrier-free engineering consultation, CAD review, and fast global sample dispatch within 8 hours!
