Unlike standard-sized magnets, large rare earth magnets require specialized magnetic circuit engineering to prevent self-demagnetization and ensure uniform flux distribution. Our engineering team utilizes finite element analysis (FEA) software to optimize the magnetization direction and aspect ratio, maximizing the BH product while maintaining structural integrity throughout the magnet's volume.
Products
large rare earth magnets
For projects requiring substantial magnetic force over large surface areas, our industrial large rare earth magnets provide unmatched magnetic energy density and structural reliability. Engineered with premium-grade neodymium materials and manufactured through our vertically integrated production process, these magnets maintain consistent performance in demanding industrial environments. With dimensions extending up to 150mm and specialized configurations for high-torque applications, our large rare earth magnets serve as critical components in wind turbine generators, magnetic separation systems, and heavy industrial automation equipment.
Send Inquiry
Product Description

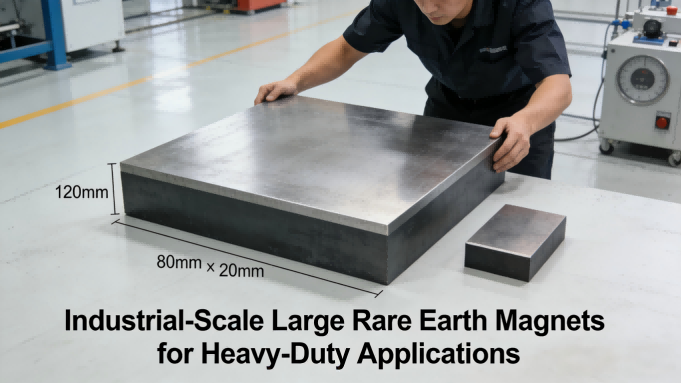

Industrial Large Rare Earth Magnets: High-Power Solutions for Heavy-Duty Applications
Engineering Advantages of Our Large-Scale Rare Earth Magnets
Optimized Magnetic Circuit Design
Structural Integrity & Thermal Management
The increased mass of large-format magnets creates unique challenges in thermal expansion and mechanical stress. We incorporate dysprosium-enhanced NdFeB grades (H, SH, UH series) with improved temperature coefficients, ensuring operational stability up to 180°C. Internal stress analysis during sintering prevents micro-cracking in large rare earth magnets exceeding 100mm dimensions.
Precision Processing for Large Formats
Manufacturing consistency becomes increasingly critical with larger magnet volumes. Our specialized CNC grinding equipment maintains ±0.02mm tolerances even on 150mm dimensions, while our proprietary multi-directional magnetization systems ensure >95% magnetization uniformity throughout the entire volume of each large rare earth magnet.
Technical Specifications: Large Rare Earth Magnet Series
The following table details our standard range of large-format rare earth magnets. Custom configurations, including specific dimensions up to 150mm, multi-pole magnetization, and specialized coatings are available for OEM applications.
| Series | Typical Dimensions (mm) | Available Grades | Magnetic Energy (BHmax, MGOe) | Max. Operating Temperature | Primary Industrial Applications |
|---|---|---|---|---|---|
| LRM-100 | 100×50×20 to 120×80×25 | N42SH, N45H, N48 | 42-48 MGOe | 150°C | Large motor rotors, magnetic lifters |
| LRM-120 | 120×60×25 to 150×80×30 | N40UH, N42SH, N45M | 40-45 MGOe | 180°C | Wind turbine generators, magnetic separators |
| LRM-150 | 150×100×30 to 150×150×40 | N38EH, N40UH, N42H | 38-42 MGOe | 200°C | Industrial automation, heavy machinery sensors |
| Custom Large Format | Up to 150×200×50 | N35-N52 all series | 35-52 MGOe | 80-220°C | Bespoke solutions for R&D and specialized equipment |
Manufacturing Excellence for Large-Scale Magnetic Components

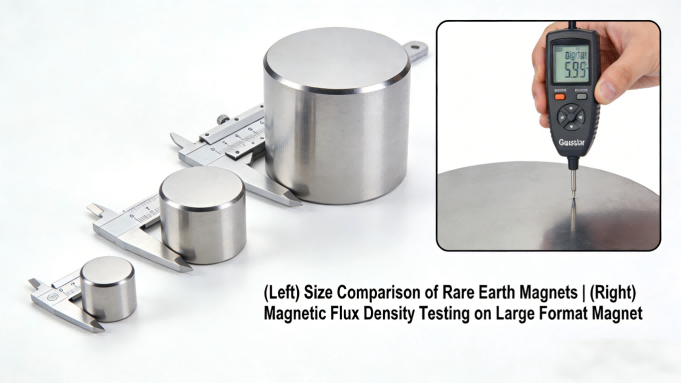

Producing reliable large rare earth magnets demands specialized equipment and process controls. Our 30,000 square meter facility houses dedicated production lines for large-format magnets, including 500-ton hydraulic presses for uniform compacting, oversized sintering furnaces with precise temperature profiles, and custom-built multi-directional magnetization fixtures. Each large magnet undergoes dimensional verification, surface flaw detection, and full-volume magnetic mapping before receiving our standard Ni-Cu-Ni coating (minimum 15μm total thickness) for corrosion protection.
IATF 16949:2016 ISO 9001:2015 Large-Format Specialization Full-Volume Magnetic Mapping RoHS & REACH Compliant
Handling & Integration Guidance
Due to their substantial magnetic force, our large rare earth magnets require specialized handling protocols. We provide detailed technical documentation including safe separation procedures, recommended assembly fixtures, and thermal expansion considerations for integration into your final product. All large magnets ship with non-magnetic spacers and are packed in reinforced 8-cell internal packaging within export-grade wooden crates for maximum protection during transit.
Request Engineering Consultation for Your Large Magnet Application
Integrating large-format rare earth magnets requires precise specification and application engineering. Our technical team provides free application analysis, including magnetic circuit simulation, thermal performance forecasting, and CAD integration support. Contact us with your dimensional requirements and performance parameters for a detailed proposal.
Direct engineering contact: +86-18226620303 (WhatsApp/WeChat) | Email: zb25@magnets-world.com
