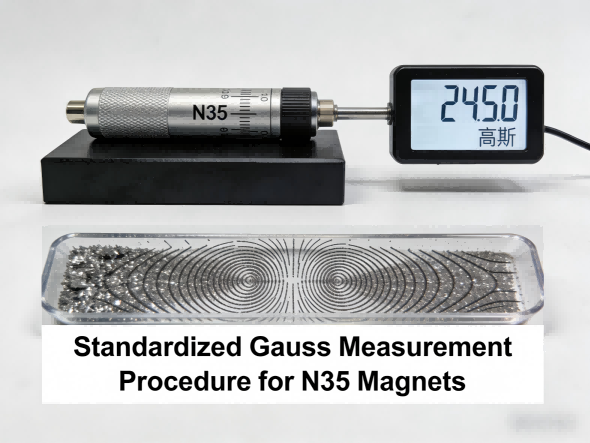

Reported gauss values vary significantly based on measurement technique. We adhere to ASTM A977 standard for magnetic testing, using calibrated Hall effect gauss meters with 0.25mm² active area probes. Measurements are taken at standardized distances (contact, 0.5mm, 1.0mm) from the magnet surface center. The gauss reading for N35 magnets decreases approximately 8-12% per millimeter of air gap, making consistent measurement protocol essential for comparative analysis between different magnet sources.

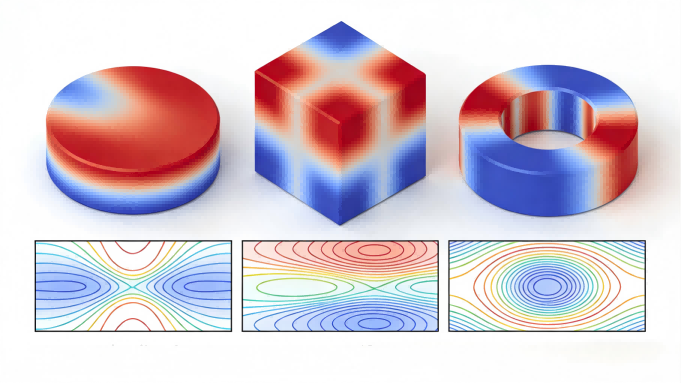

The shape and aspect ratio of N35 magnets significantly affect surface gauss readings. Long, thin magnets exhibit lower surface flux density due to stronger internal demagnetizing fields, while thick, short magnets show higher readings. For example, an N35 disc magnet (10mm diameter × 2mm thick) typically measures 2,300-2,400 gauss, while the same material in block form (10mm × 10mm × 10mm) may reach 2,500-2,600 gauss. Our technical datasheets provide geometry-specific gauss data for accurate application planning.

Consistent gauss performance requires strict material and process controls. Our N35 magnets use virgin neodymium materials (≥99.5% purity) with controlled dysprosium content to ensure uniform magnetic properties. Through statistical process control of sintering temperatures (±2°C) and magnetization field strength (≥2.0T), we achieve batch-to-batch gauss variation of less than ±3%, significantly lower than industry typical ±8-10% variation. Each production lot undergoes gauss mapping to verify uniformity.
