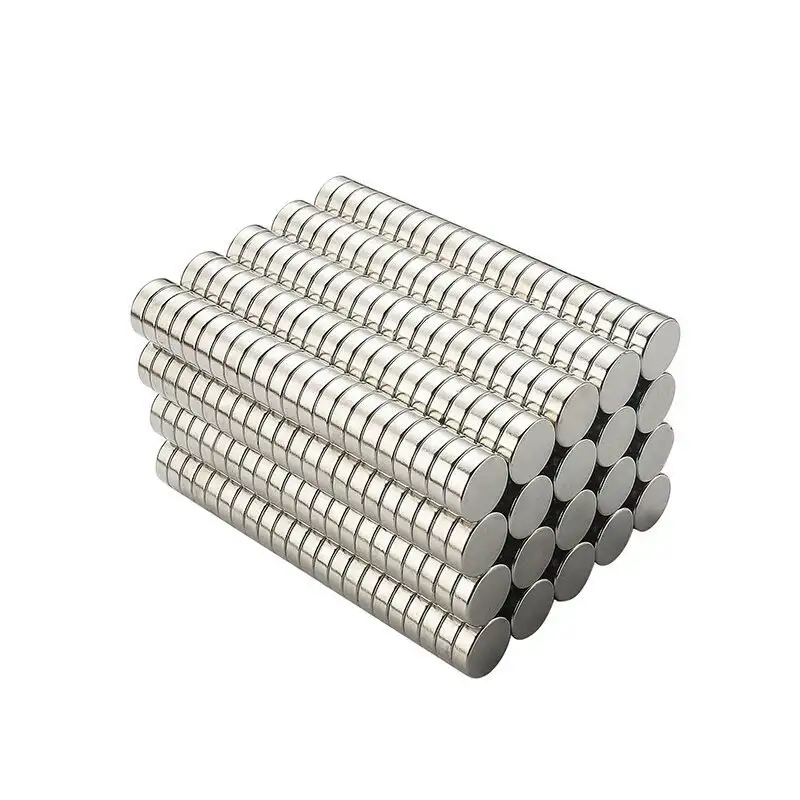

Zhaobao Magnet Group is an experienced Neodymium Disk Magnets manufacturer and supplier specializing in high-strength permanent magnet components. Combining decades of magnet production experience with integrated R&D and manufacturing capabilities, we provide customized magnetic solutions for industries requiring compact design and stable performance. Our NdFeB disk magnets are engineered for efficient magnetic circuits, precise installation, and reliable operation in demanding environments.
High Performance Magnetic Applications
Neodymium materials have become a preferred choice for modern magnetic systems because of their excellent energy density and compact design advantages. Our Neodymium Disk Magnets combine advanced NdFeB material technology with precision processing methods to support applications where strong magnetic output, reliable stability, and efficient space utilization are required.
High Magnetic Performance of NdFeB Material
The main advantage of NdFeB magnets is their ability to generate strong magnetic fields while maintaining a compact size. Compared with traditional permanent magnet materials, neodymium provides higher magnetic energy density, allowing engineers to reduce component size while maintaining required performance.
Our manufacturing process focuses on controlling material composition, magnetic orientation, and sintering conditions to achieve consistent magnetic characteristics. This makes these magnets suitable for applications where magnetic strength directly affects equipment efficiency and operational reliability.
Advantages of NdFeB Material Selection
-
High magnetic energy output for compact designs
-
Excellent strength-to-volume ratio for miniaturized equipment
-
Stable magnetic performance when properly selected according to operating conditions
-
Flexible grade options for different application requirements
Advantages of Disk Shape Design
The circular structure provides predictable magnetic field distribution and convenient integration into mechanical assemblies. The flat surface design allows easy positioning, bonding, or mechanical fixing, making this configuration widely used in precision equipment.
Structural Benefits for Engineering Integration
-
Symmetrical shape supports uniform magnetic field distribution
-
Axial magnetization enables efficient magnetic circuit design
-
Flat surfaces simplify assembly and positioning
-
Available thickness options support different magnetic force requirements
For rotating systems, sensing devices, and compact mechanisms, the geometry of Neodymium Disk Magnets provides a practical balance between magnetic performance and installation convenience.
Optimized Magnetic Properties for Industrial Applications
Selecting the correct magnetic grade is essential for achieving reliable performance. Different NdFeB grades provide different levels of magnetic force, temperature resistance, and coercivity.
Key Magnetic Parameters Considered During Selection
-
Remanence (Br): Determines the remaining magnetic strength after magnetization
-
Coercivity (Hcb/Hcj): Indicates resistance against demagnetization
-
Maximum Energy Product (BHmax): Represents overall magnetic energy capability
-
Operating temperature requirement: Ensures stable performance under working conditions
Grade Options for Different Performance Requirements
Different applications require different combinations of magnetic strength and environmental stability. Our NdFeB production capability supports various grades to meet diverse engineering requirements.
|
Grade Range
|
Main Characteristics
|
Typical Applications
|
|
N35-N42
|
Balanced magnetic performance and cost efficiency
|
General industrial equipment, magnetic assemblies
|
|
N45-N50
|
Higher magnetic output for compact designs
|
Motors, sensors, automation components
|
|
N52
|
Maximum magnetic energy density among standard grades
|
High-performance compact devices
|
|
SH/UH/EH Series
|
Enhanced temperature stability
|
High-temperature industrial applications
|
Precision Manufacturing for Reliable Assembly
Magnetic components require accurate dimensions to ensure proper assembly and stable performance. Our manufacturing process includes precision machining, surface processing, and inspection procedures to maintain product consistency.
Manufacturing Capabilities
-
Controlled diameter and thickness accuracy
-
Consistent flatness and surface quality
-
Precision grinding for demanding applications
-
Customized dimensions based on technical requirements
Surface Coating for Long-Term Protection
NdFeB materials require suitable surface protection because rare earth magnets may be affected by oxidation in certain environments. Proper coating selection improves durability and extends service life.

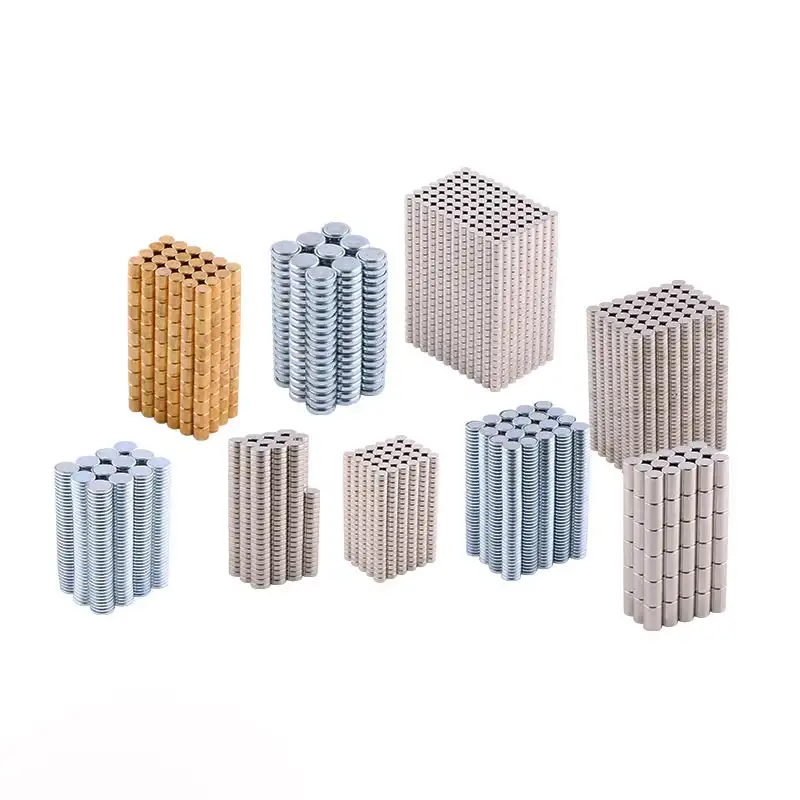

Available Coating Solutions
-
Ni-Cu-Ni coating for general corrosion protection
-
Zinc coating for specific industrial environments
-
Epoxy coating for enhanced protection requirements
-
Gold coating for special applications
Precision Manufacturing Process
Producing high-performance Neodymium Disk Magnets requires far more than simply selecting a strong magnetic material. Every manufacturing stage, from alloy preparation to final magnetization, directly affects magnetic output, mechanical reliability, and service life. Our vertically integrated production system allows us to control critical parameters throughout the entire process.
The manufacturing process begins with carefully selected rare earth raw materials. We use high-purity neodymium, iron, and boron materials with strict composition control to create a stable NdFeB alloy. During melting, hydrogen decrepitation, powder preparation, orientation pressing, and vacuum sintering, advanced equipment and experienced technicians ensure consistent magnetic properties across every batch.
High-Density Sintering Technology
The magnetic strength of NdFeB materials depends heavily on density and grain structure. Our vacuum sintering process minimizes internal defects and improves crystal alignment, allowing Neodymium Disk Magnets to achieve excellent remanence, coercivity, and energy density. This stable microstructure helps reduce performance fluctuations during long-term operation.
Advanced Surface Treatment Solutions
Neodymium magnets contain active rare earth elements that require effective corrosion protection. We provide multiple coating options including Ni-Cu-Ni, zinc, epoxy, gold, and customized coatings. These treatments improve oxidation resistance and allow our magnets to operate reliably in humid, industrial, and demanding environments.
Customized Shape & Magnetic Direction
Although disk geometry appears simple, different applications require different magnetic configurations. We support axial magnetization, radial magnetization, multi-pole magnetization, and customized magnetic patterns. Our engineering team works with customers to optimize magnetic circuits and improve overall system efficiency.
Material Selection Guide
Selecting the correct magnet grade is essential for achieving the required balance between magnetic force, temperature resistance, and cost efficiency. We offer a complete range of NdFeB grades from standard N35 to high-performance N52, as well as high-temperature grades such as N42SH, N45UH, and N48EH.
|
Grade
|
Maximum Energy Product
|
Temperature Capability
|
Recommended Applications
|
|
N35-N42
|
Moderate magnetic strength
|
Up to 80°C
|
General sensors, magnetic holders, consumer products
|
|
N45-N50
|
High magnetic performance
|
Up to 100°C
|
Motors, automation equipment, industrial assemblies
|
|
N52
|
Maximum standard NdFeB strength
|
Typically up to 80°C
|
Miniaturized motors, high-performance magnetic systems
|
|
SH / UH / EH Grades
|
High coercivity performance
|
120°C-200°C+
|
Automotive, aerospace, high-temperature equipment
|
Engineering Applications
Thanks to their compact circular structure, strong magnetic field, and flexible customization options, Neodymium Disk Magnets are widely adopted across multiple industries. Their high strength-to-volume ratio makes them especially valuable where installation space is limited but magnetic performance requirements are high.
Automotive & Electric Mobility
In electric vehicles, hybrid systems, and automotive sensors, compact and reliable magnets are essential. Our disk magnets are used in BLDC motors, position sensors, actuators, and electronic control systems where stable magnetic output improves efficiency and reliability.
Industrial Automation Equipment
Automation systems require precise magnetic control for positioning, detection, and movement. Disk-shaped NdFeB magnets provide consistent magnetic fields for robotics, linear motors, magnetic couplings, and industrial inspection equipment.
Consumer Electronics & Smart Devices
Miniature electronic products depend on compact magnetic components. Applications include speakers, headphones, vibration motors, magnetic charging systems, and camera modules where small size and strong magnetic performance are critical.
Strict Quality Control & International Certifications
Quality consistency is one of the most important factors when purchasing permanent magnets for industrial applications. Every batch of our Neodymium Disk Magnets passes multiple inspection procedures before shipment.
Our quality system covers chemical composition analysis, dimensional measurement, magnetic performance testing, coating inspection, and reliability evaluation. Advanced equipment including hysteresisgraph testers, coordinate measuring machines (CMM), and coating thickness analyzers ensures every magnet meets customer specifications.
IATF 16949:2016 Automotive Quality System ISO 9001:2015 Certified ISO 14001 Environmental Management REACH & RoHS Compliant SGS Tested CP65 / EN71 Approved
Reliable Testing Before Shipment
Before delivery, each production batch undergoes magnetic flux testing, dimensional verification, appearance inspection, and coating reliability tests. For demanding applications, we can provide inspection reports and customized quality documentation to support your supply chain management.
Packaging, Delivery & Custom Engineering Support
Due to their strong magnetic attraction, proper packaging is essential for safe transportation. We use individual protection methods, reinforced inner boxes, and export-standard cartons to prevent collision damage, chipping, and magnet displacement during international shipping.
Beyond manufacturing, our engineering team provides technical assistance including material selection, magnetic circuit optimization, prototype development, and mass production support. Whether you require standard sizes or fully customized designs, we help transform your magnetic concept into a reliable production solution.
