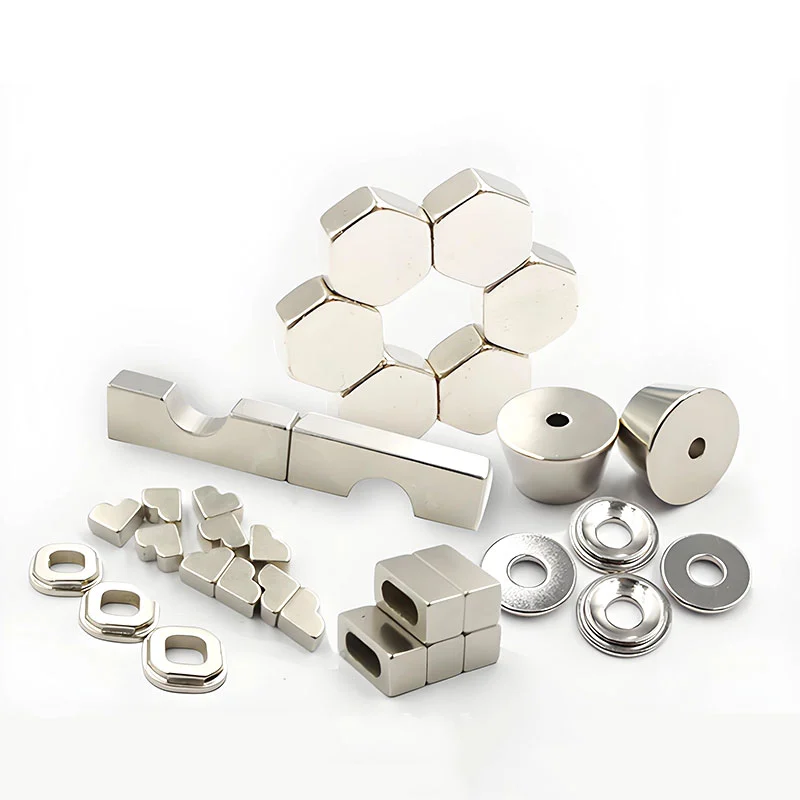

Introduction to Neodymium Magnets

Neodymium magnets, also known as NdFeB, NIB, or Neo magnets, are the strongest type of permanent magnet commercially available today. Composed of an alloy of neodymium, iron, and boron, these rare-earth magnets offer an exceptional strength-to-size ratio. This makes them indispensable in modern technology, from the tiny motors in computer hard drives and headphones to powerful industrial motors, magnetic separation systems, and innovative DIY projects. Their superior magnetic properties have revolutionized product design, allowing for smaller, lighter, and more efficient devices. Understanding their specifications and handling requirements is crucial for safe and effective application across all fields.

Key Product Parameters and Specifications

To select the correct neodymium magnet for your application, several critical parameters must be considered. These define the magnet's strength, temperature resistance, and durability.This indicates the maximum energy product, measured in Mega-Gauss Oersteds (MGOe). A higher grade signifies a stronger magnet. Common grades range from N35 to N52 for standard temperatures.

Neodymium magnets are prone to corrosion and must be protected. Common coatings include Nickel (Ni-Cu-Ni), Zinc, Epoxy, and Gold.

The magnetic strength decreases as temperature increases. The Maximum Operating Temperature defines the limit before irreversible loss occurs.

This is the force required to pull a magnet away from a thick, flat steel plate. It is a practical measure of holding strength.

The axis along which the magnet is magnetized (e.g., through thickness, through diameter).

Neodymium Magnet FAQs

What are neodymium magnets made of?

Neodymium magnets are composed of an alloy of Neodymium (Nd), Iron (Fe), and Boron (B), forming a tetragonal crystalline structure known as Nd2Fe14B. This specific atomic arrangement is responsible for its extreme magnetic properties. Small amounts of other elements like Dysprosium or Terbium may be added to improve temperature resistance and coercivity.

How strong are neodymium magnets compared to other magnets?

Neodymium magnets are significantly stronger than both ferrite (ceramic) and Alnico magnets. A small neodymium magnet can have a pull force many times greater than a ceramic magnet of the same size. For example, an N52 grade magnet can be over 10 times stronger than a standard ceramic magnet. This superior strength allows for miniaturization in electronic devices.

What do the different grades (N35, N42, N52) mean?

The grade indicates the magnet's maximum energy product, which is a measure of its strength. The number following the 'N' represents the Mega-Gauss Oersteds (MGOe). N35 has a BHmax of 35 MGOe, N42 has 42 MGOe, and N52 has 52 MGOe. Therefore, an N52 magnet is stronger than an N42 magnet of the exact same size and shape. Higher grades provide greater magnetic flux density.

Why do neodymium magnets need a coating?

The neodymium-iron-boron alloy is highly susceptible to corrosion, particularly from moisture. Unprotected, the magnet will oxidize and crumble, losing its structural integrity and magnetic properties. Coatings such as nickel (triple-layer Ni-Cu-Ni), zinc, epoxy, or parylene create a protective barrier against environmental factors, ensuring longevity and performance.

What is the maximum temperature a neodymium magnet can withstand?

Standard grade neodymium magnets (N) have a maximum operating temperature of approximately 80°C (176°F). Exceeding this temperature can cause permanent loss of magnetic strength. For higher temperature applications, special grades are available: M-grade up to 100°C, H-grade up to 120°C, SH-grade up to 150°C, UH-grade up to 180°C, and EH-grade up to 200°C. The Curie temperature, where magnetism is completely lost, is much higher.

Are neodymium magnets safe to handle?

They require careful handling due to their immense strength. Key safety precautions include: keeping them away from all electronic devices, pacemakers, and credit cards; wearing protective gloves and eyewear to prevent pinching injuries; ensuring they do not snap together violently, which can cause flying shrapnel; and never drilling or machining them, as the dust is flammable and toxic if inhaled.

How can I separate two powerful neodymium magnets that are stuck together?

Do not attempt to pull them apart with your hands. Use a non-magnetic tool like a plastic or wooden wedge to slide between them, applying steady, lateral pressure to shear them apart. Alternatively, slide one magnet off the edge of a table until it falls away, breaking the magnetic circuit. Always keep fingers clear of the mating surfaces.

Can neodymium magnets lose their magnetism?

Neodymium magnets are permanent magnets but can be demagnetized under certain conditions. The primary causes are exposure to temperatures above their maximum operating limit, strong opposing magnetic fields, physical damage (chipping or cracking), and radiation. Proper selection for the application environment will ensure a very long functional life with minimal degradation.

What are the main industrial applications of neodymium magnets?

Their applications are vast and critical. They are used in the motors and generators of electric vehicles, wind turbines, and drones. They are essential in hard disk drives, loudspeakers, and headphones. Medical technology uses them in MRI machines and surgical tools. Other uses include magnetic separators in recycling, magnetic couplings in pumps, and actuators in aerospace.

How should I store neodymium magnets safely?

Store them in a cool, dry place away from electronic devices. Keep them in their original packaging if possible. To prevent them from attracting each other, store them with non-magnetic spacers between each magnet. For larger quantities, use a steel keeper or a steel container to complete the magnetic circuit, which helps preserve their strength and makes handling safer.
