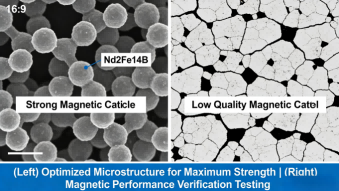

Our strong earth magnets achieve superior magnetic energy through optimized Nd2Fe14B crystal alignment during the sintering process, resulting in remanence (Br) values up to 1.48T and intrinsic coercivity (Hcj) exceeding 25 kOe. Unlike standard magnets, we utilize precise control of the powder particle size distribution (3-5μm) and magnetic field orientation during pressing to maximize the (BH)max product, ensuring maximum magnetic strength in the final application.
Products
strong earth magnets
Engineered for applications where magnetic strength directly impacts performance, our premium strong earth magnets deliver exceptional pulling force and holding power through optimized neodymium compositions and advanced manufacturing techniques. Utilizing virgin raw materials with purity exceeding 95% and proprietary sintering processes incorporating dysprosium enhancement, these magnets achieve maximum energy products (BHmax) up to 52 MGOe while maintaining structural integrity under operational stress. Our three decades of specialized manufacturing ensure every strong earth magnet provides consistent, reliable magnetic performance in high-torque motors, precision medical devices, industrial automation, and renewable energy systems.
Send Inquiry
Product Description
Maximum Strength Earth Magnets: Unparalleled Magnetic Force for Demanding Applications
Technical Superiority of Maximum-Strength Earth Magnets
Enhanced Magnetic Energy Density
High-Purity Material Composition
We exclusively source neodymium praseodymium (NdPr) metal from certified suppliers with minimum 99.5% purity, avoiding recycled or contaminated materials that compromise magnetic strength. Our proprietary alloying process incorporates precise dysprosium (Dy) additions (0.5-3.0wt%) using high-cost DyFe alloy rather than cheaper Holmium substitutes, ensuring enhanced temperature resistance without sacrificing magnetic output in these strong earth magnets.
Precision Thermal Processing
The exceptional strength of our magnets results from precisely controlled heat treatment cycles in hydrogen atmosphere sintering furnaces. We implement multi-stage tempering at 500-600°C with specific cooling rates to optimize the microstructure, minimizing reverse domain nucleation and maximizing coercivity. This thermal processing ensures each strong earth magnet maintains its magnetic strength even under elevated operating temperatures up to 220°C for EH grades.
Performance Specifications: High-Strength Magnet Grades
The following table details the magnetic performance characteristics of our strongest available grades. These strong earth magnets are engineered for applications where maximum magnetic force is critical, with customization available for specific operating conditions and dimensional requirements.
| Maximum Strength Grade | Remanence (Br) Typical | Coercivity (Hcb) Typical | Intrinsic Coercivity (Hcj) Min | Max Energy Product (BH)max | Temperature Coefficient (%/°C) | Recommended Applications |
|---|---|---|---|---|---|---|
| N55 (Premium) | 1.43-1.48 T | ≥860 kA/m | ≥955 kA/m | 50-52 MGOe | -0.11 to -0.13 | High-performance motors, audio systems |
| N52SH | 1.42-1.46 T | ≥835 kA/m | ≥1590 kA/m | 48-50 MGOe | -0.10 to -0.12 | Servo motors, wind turbines |
| N50H | 1.40-1.44 T | ≥820 kA/m | ≥1350 kA/m | 46-48 MGOe | -0.09 to -0.11 | Industrial pumps, compressors |
| N48UH | 1.38-1.42 T | ≥800 kA/m | ≥1990 kA/m | 44-46 MGOe | -0.08 to -0.10 | Automotive (EPS, sensors) |
| N45EH | 1.33-1.37 T | ≥780 kA/m | ≥2388 kA/m | 42-44 MGOe | -0.07 to -0.09 | High-temperature industrial |
Strength Verification & Quality Assurance Protocol
Each batch of our strong earth magnets undergoes comprehensive strength verification through multiple testing methodologies. We perform hysteresis graph analysis using Lake Shore 7300 series magnetometers to confirm (BH)max values, followed by practical pull force testing with calibrated digital force gauges to validate real-world performance. Our quality control laboratory utilizes X-ray fluorescence (XRF) spectrometers to verify material composition and eddy current testers to detect subsurface flaws that could compromise magnetic strength.
Strength Certified IATF 16949:2016 Material Traceability Hysteresis Graph Testing ISO 9001:2015 Pull Force Verification
Application Engineering Support
Selecting the optimal strong earth magnet for your application requires consideration of multiple factors including working air gap, temperature exposure, demagnetizing fields, and mechanical stress. Our engineering team provides complimentary application analysis using electromagnetic simulation software (ANSYS Maxwell/COMSOL) to predict performance and recommend the most efficient grade and geometry. We maintain a comprehensive technical library with application notes covering motor design, magnetic coupling, holding systems, and sensor integration.
Request Technical Consultation for Maximum Strength Requirements
Our engineering specialists are available to discuss your specific magnetic strength requirements, analyze your application parameters, and recommend the optimal strong earth magnet solution. We provide free sample magnets for testing, detailed technical datasheets with performance curves, and CAD models for integration into your designs. Contact us with your pull force requirements, operating conditions, and dimensional constraints for a comprehensive proposal.
Direct technical support: WhatsApp/WeChat: +86-18226620303 | Email: zb25@magnets-world.com | Response within 4 business hours
